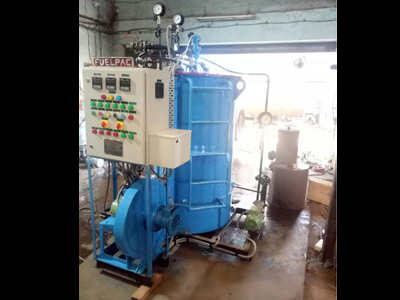

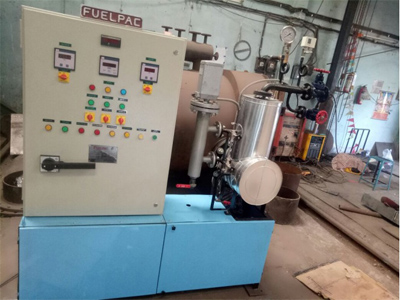

Fuelpack Boiler & Engg. Co. (I) Pvt. Ltd. A reliable manufacturer of high quality, Non-IBR steam boilers. We have a proven track record of providing efficient and reliable boiler solutions to various industries in India and across the globe. Our boilers are designed for optimum performance and fuel efficiency, ensuring long-term cost savings.
We prioritize safety by incorporating essential safety features into our boiler designs. We provide comprehensive after sales support including installation, commissioning and maintenance services. We prioritize quality and customer satisfaction. We use high quality materials and follow a strict manufacturing process to ensure the durability and efficiency of our boilers. Our team of experienced engineers has in-depth knowledge of non-IBR boiler design and applications. We work closely with customers to understand their specific needs and recommend the most suitable boiler solution
Benefits of Non-IBR Boilers:Cost-effective: Non-IBR boilers offer a more economical solution compared to IBR boilers due to simpler design and regulatory requirements.
Faster Installation: The streamlined design and approval process of non-IBR boilers can lead to faster installation and commissioning.
Suitable for Various Applications: Our non-IBR boilers cater to a diverse range of industrial applications requiring lower steam pressure and capacity, such as:
- • Laundry and textile industries
- • Food processing plants
- • Pharmaceuticals and chemical industries
- • Hotels and resorts
- • Educational institutions
Why a SUPERTHERM System is Economical?
Fully automatic coil type, the design parameters like temperature dynamics, heal transfer area, combustion volume & Thermal efficiency, Ease of operation, maintenance aspects and safeties are appropriately tuned for the optimum performance.
Salient Features
- • Fully automatic-Negligible attendance
- • Instant steam-Eliminates Warm up period
- • Compact-Light weight-Negligible foundation
- • High thermal efficiency-Low operating cost
- • Built in water preheated-Less fuel cost
- • Additional manual operation Switch
- • Prevents production loss
- • Tested before dispatch
Safeties & Interlocks
- • Burner trips with high pressure & restarts
- • automatically with fall in pressure
- • Burner trips with high temperature & restarts
- • automatically with fall in temperature
- • Flame failure monitoring system
- • High flue gas temperature trips the system
- • On Overloading motor gets trip
- • Now water conditions trips the burner indirectly
- • Spring loaded burner
- • High pressure safety relief value
- • Individual contactors, relays & fuses for each motor.
Technical Specifications
| PARAMETER | CAPACITY | FUEL CONSUMPTION | CONNECTED LOAD | STEAM O/L DIA | FUEL GAS O/L DIA | OVER ALL DIMENSIONS | DRY WT. | ||
| L | W | H | |||||||
| UNIT | Kgs/hr. | Kgs/hr. | HP | m.m. | m.m. | M | M | M | Kgs. |
| FW-10 | 100 | 6 | 1.5 | 19 | 168 | 1.3 | 0.70 | 1.3 | 1100 |
| FW-20 | 200 | 12 | 1.75 | 25 | 168 | 1.3 | 0.70 | 1.3 | 1200 |
| FW-30 | 300 | 18 | 3 | 25 | 219 | 1.3 | 0.75 | 1.5 | 1300 |
| FW-40 | 400 | 24 | 3 | 40 | 273 | 2.0 | 0.80 | 1.8 | 1500 |
| FW-50 | 500 | 30 | 4.5 | 40 | 273 | 2.0 | 0.90 | 2.2 | 1800 |
| FW-60 | 600 | 36 | 4.5 | 40 | 273 | 2.0 | 0.90 | 2.5 | 2000 |
| FW-80 | 800 | 48 | 6.5 | 50 | 273 | 2.2 | 0.95 | 2.5 | 2200 |
| FW-100 | 1000 | 60 | 7 | 60 | 323 | 2.4 | 1.00 | 2.6 | 2400 |
